High concentrations of solids and fibers increase the demands on pump technology. Efficiency and trouble-free operation are Hidrostal’s attributes, even in sewage treatment plant applications.
Specific wastewater treatment plant applications for treated wastewater
The challenges in wastewater treatment are increasing and the demands on the machine technology used are rising in terms of process reliability and sustainability. This applies to the entire wastewater treatment process, which includes all treatment stages and applications in wastewater treatment plant operation.
When it comes to wastewater treatment, the operators of wastewater treatment plants face the same challenges across the globe
The pollutant load from discharged wastewater and surface water, which is accompanied by increasing amounts of solids, wet wipes and other clogging contents, must be transported safely through the entire treatment process. The wastewater treatment plant should be operated efficiently, require little maintenance and have no operational faults.
To this end, a wide variety of requirements are placed on the pumps used. For example, wear resistance and non clogging attributes are at the top of the list of requirements at the inlet to the sewage treatment plant.
The grit chamber places the highest demands on the wear resistance of the pumps.
Emulsification should be kept low during fat removal in order to work effectively in subsequent processes with a low water content.
In the further purification process, the pumps are tasked with capabilities ranging from the gentle pumping of biologically active sludge to the trouble-free pumping of viscous media.
Their pump systems offer the best possible efficiency in all processes at the wastewater treatment plant!
Mechanical wastewater treatment

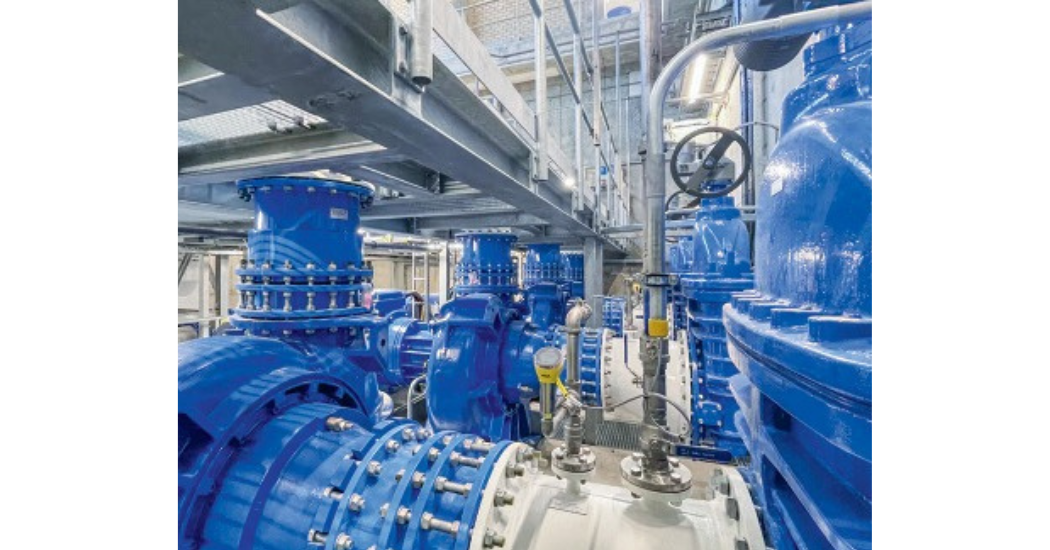

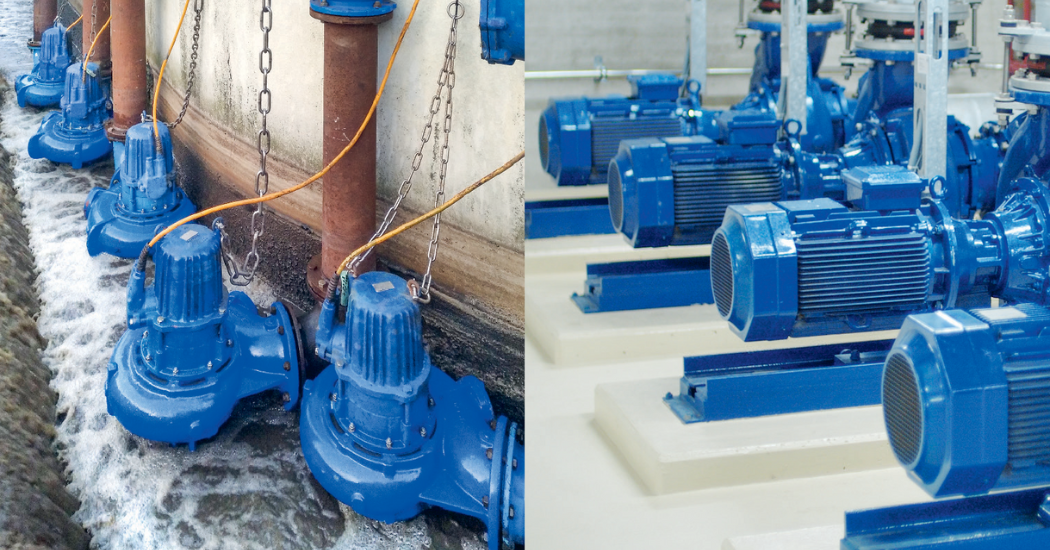

Pumps in the inlet pumping station of a sewage treatment plant must fulfil special requirements in order to work effectively and reliably. The Hidrostal screw centrifugal pumps fulfil the requirements for non clogging behavior, wear resistance, efficiency and ease of maintenance. Pumps for heavy-duty work with maximum operational reliability
Hidrostal’s pump solutions are specially designed to handle contaminated wastewater and prevent blockages caused by solids such as sand, sludge, wet wipes, and other pollutants. The proprietary FreeFlow technology prevents solids from accumulating at the impeller tip, on the blade, behind the impeller, or in the mechanical seal. Combined with the Hidrostal impeller, this innovation defines the advanced performance of the Hidrostal screw centrifugal impeller.
The robust and wear-resistant pumps reliably handle abrasive particles and solids during mechanical clarification. The geometric design of the pump components, in particular the impeller and inlet liner,= together with the materials used, contribute significantly to the wear resistance. Their decades of experience and their own cast materials also make their systems particularly suitable for use in grit chambers.
Externally adjustable hydraulics and base plates with mounting slides extend the service life of Hidrostal’s pumps and contribute to easier maintenance. The adjustable hydraulics ensure consistently high efficiency over the entire service life of the pump and allow wear parts to be used for a long time. The use of Hidrostal pump systems makes an important contribution to sustainable wastewater treatment.
Grease trap pump optimizes waste water separation with PreroClean
When the wastewater passes through the clarification process, the grease trap pump shows its strength. The gentle deflection of the flow in the pump, with minimal shear forces in the pumped medium, causes minimal emulsification of the grease content in the wastewater.
This optimizes the subsequent separation process and makes it more effective compared to other channel impeller pumps.

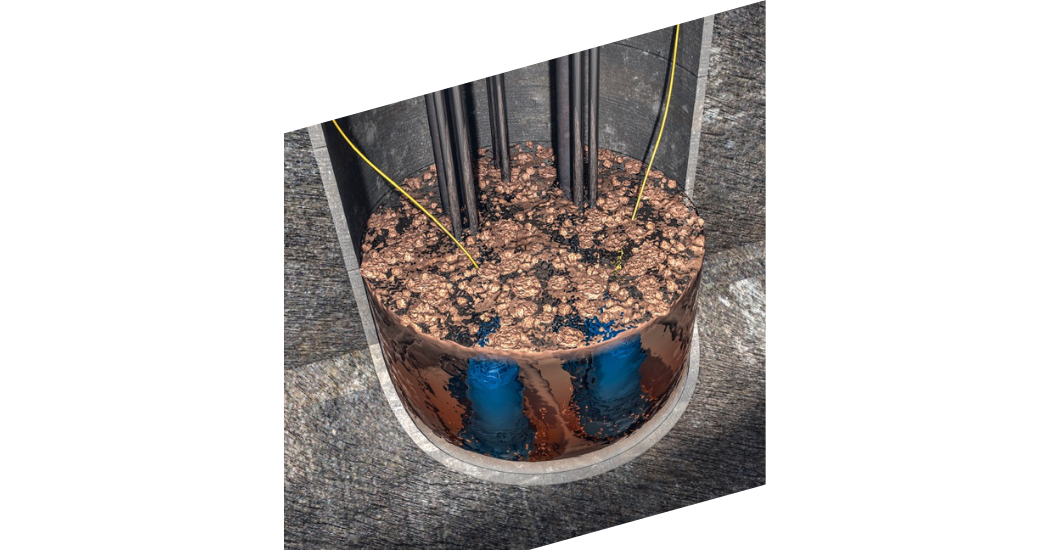

The PreroClean system by Hidrostal offers the best conditions for a sediment-free collection chamber, eliminating floating pollutants in wet wells and thus ensuring the lowest possible maintenance costs.

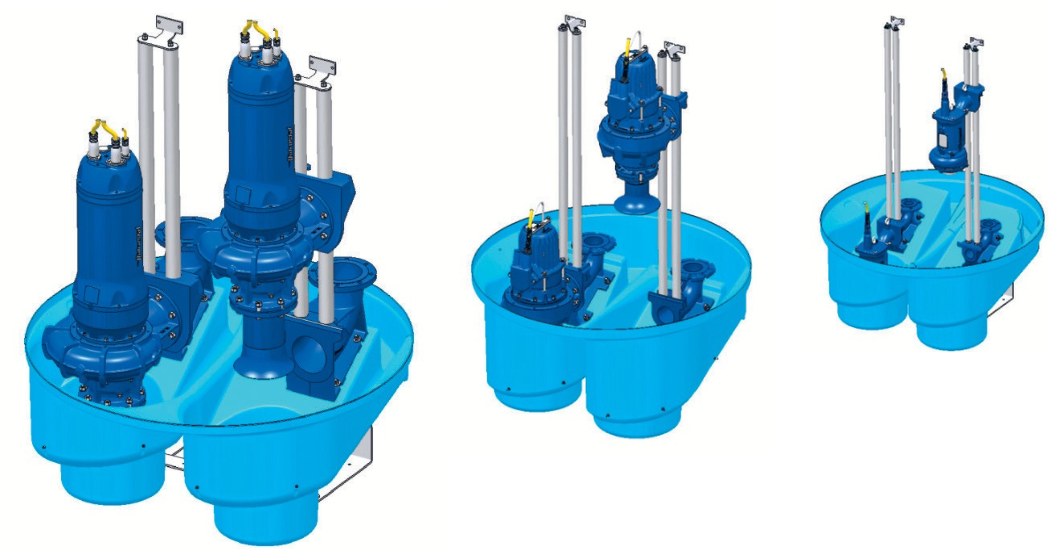

PreroClean double tank system
→ Standard shaft diameter 1.2 / 1.5 / 2 m (3.94 / 4.92 / 6.56 ft)
→ Large number of individual tanks for large systems
→ Large free ball passages from 50 mm to 285 mm (2 – 11”)
→ Impellers for viscous media, particularly those containing fibers
The Hidrostal screw centrifugal impeller at its best
The stable characteristic curve is the preliminary advantage of the Hidrostal screw centrifugal impeller pump, especially when pumping sludge with varying media properties. They impeller is characterized by its excellent pumping performance of high solids content and is therefore very suitable for pumping sewage sludge with a high sediment and fiber content.
HidroMix pump mixing system for sludge tanks and digesters
→ Dry-installed circulation pump
→ System can be customised to individual requirements
→ Proven floc protection for return sludge
→ Low emulsification when pumping water-fat mixtures
→ Stable characteristic curve even with viscous media
→ Dry substance content of Newtonian liquids up to 15 % can be transported
With biological sludge, the low shear forces and gentle deflection is the key to maintaining effective bacterial cultures in the further clarification process. The steep characteristic curve contributes to improved energy efficiency, especially when variable flow rates and solids concentrations are required in the process, e.g. with speed-controlled pumps.
The possible applications of the Hidrostal pumps range from transporting the sludge to mixing it with the HidroMix system.
You can find more information on at: hidrostal.com
Hidrostal offers innovative solutions in wastewater treatment
When planning a new wastewater treatment plant or modernizing an existing one, the operating costs play just as important a role as the investment costs. Hidrostal’s innovative pumps, systems and solutions, including the HidroMix mixing systems, and the PreroClean collection chamber designs and other Hidrostal solutions combine reliable pumping performance with high energy efficiency and low maintenance throughout the entire process.
The Hidrostal advantage becomes clear as soon as the wastewater reaches the treatment plant. They guarantee efficiency and reliability in both mechanical and biological processes, while reducing energy consumption at the same time.
Hidrostal actions include:
→ The use of highly efficient IE3 and IE4 motors
→ The provision of submersible motor units and bearing frame pumps for pump installation.

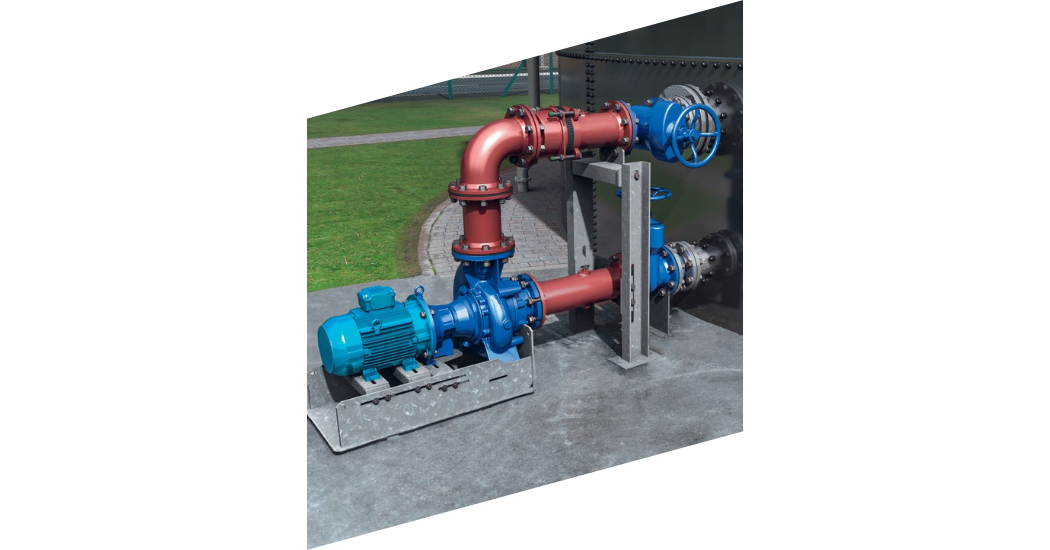

→ Adaptation of the pumps to existing installation requirements using base plates and bends for horizontal and vertical installations
With Hidrostal, customers have a partner who recognizes potential improvements to their systems and plans their implementation. Hidrostal’s engineers and service staff work closely with clients to develop optimal solutions and create tailored maintenance and servicing concepts.

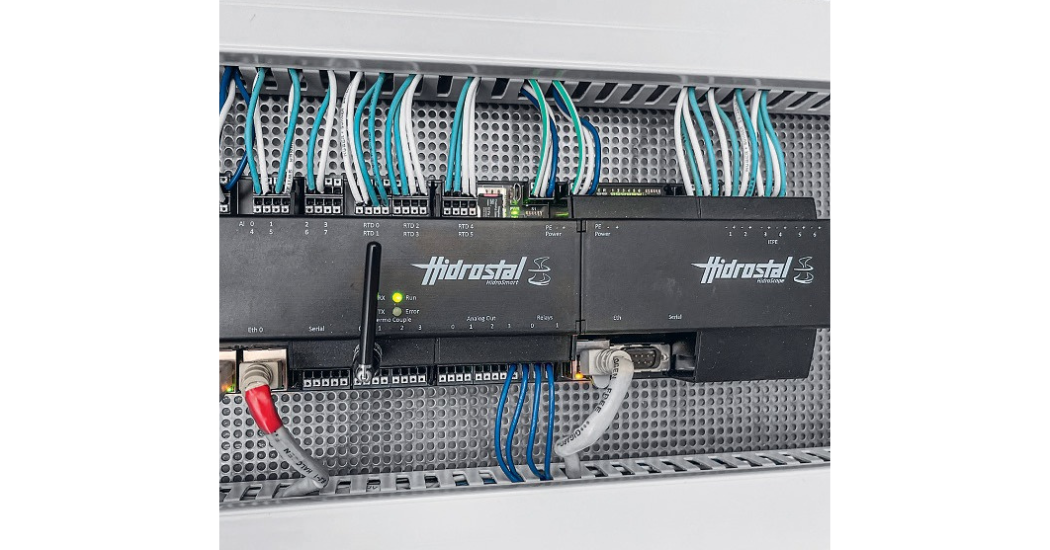

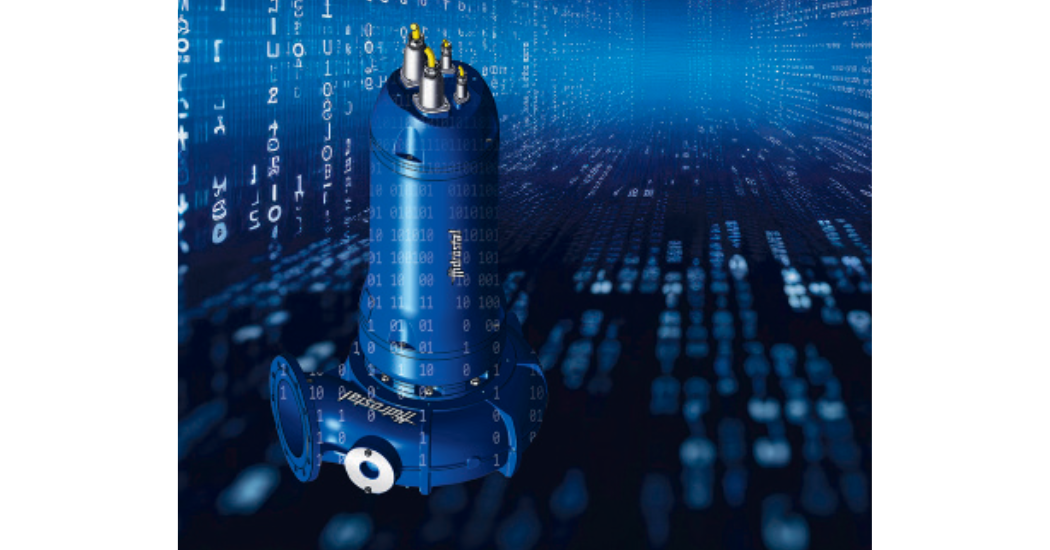

Cloud-based solutions for pump monitoring and control
Sensors installed on the pump round off our portfolio. The electrical control and regulation technology is
installed in the control cabinet and not in the pump. With HidroSmart, Hidrostal offers an evaluation unit for all information supplied by the pump with additional remote monitoring in the cloud or from the control center for predictive maintenance. HidroScope, the online vibration analysis module, gives you comprehensive insights into the condition of your pumps.
Reliable and efficient services during the whole life cycle of your pumps
Hidrostal’s customers are individual, and so are their solutions, products, and services. They offer support in the early project phase to find the optimal pump for a specific application.
Thanks to their excellent quality system and worldwide manufacturing, sales, and service network, they meet any demand and provide efficient maintenance and servicing.
Consulting & training
Hidrostal’s experienced team of engineers provides expert guidance on selecting the right pump and identifying energy-saving solutions. They also offer professional pump selection training and support in designing the optimal system to meet your specific needs.

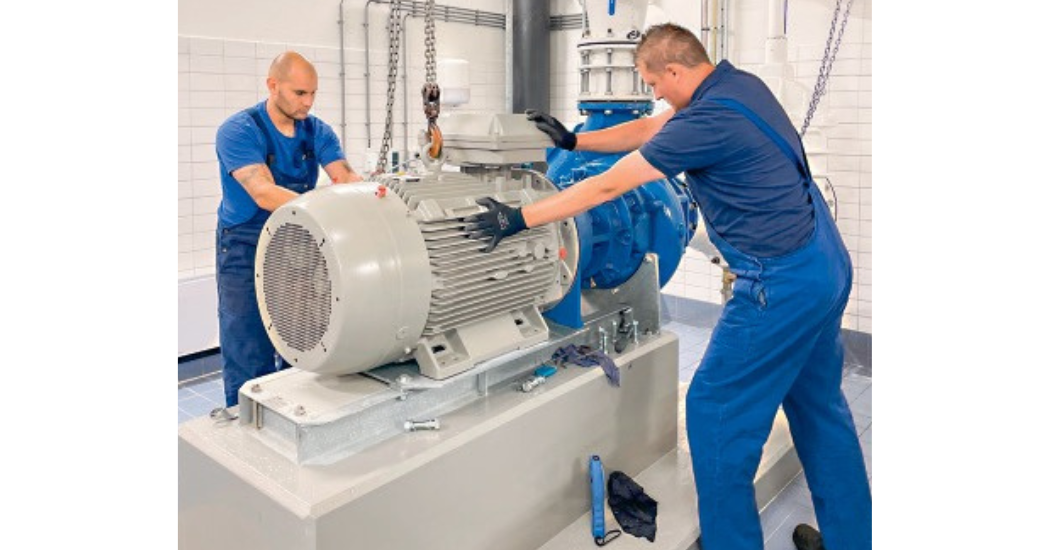

Production & installation
Hidrostal’s skilled technicians deliver tailored solutions ranging from minor service calls to full installation and commissioning. They specialize in comprehensive re-engineering to ensure peak equipment performance and handle piping and fitting installations with the same level of precision.
Digital solutions
Hidrostal’s cloud-based solutions for failure-free pump operation enable seamless remote monitoring and control of assets. With their vibration monitoring module, users gain real-time insight into the condition of their pumps.
Service & repair
Hidrostal prioritizes reliable pump operation. With an extensive inventory of original spare parts and an experienced service team, they provide expert advice, predictive maintenance, and swift repairs for pump installations.
Rental solutions

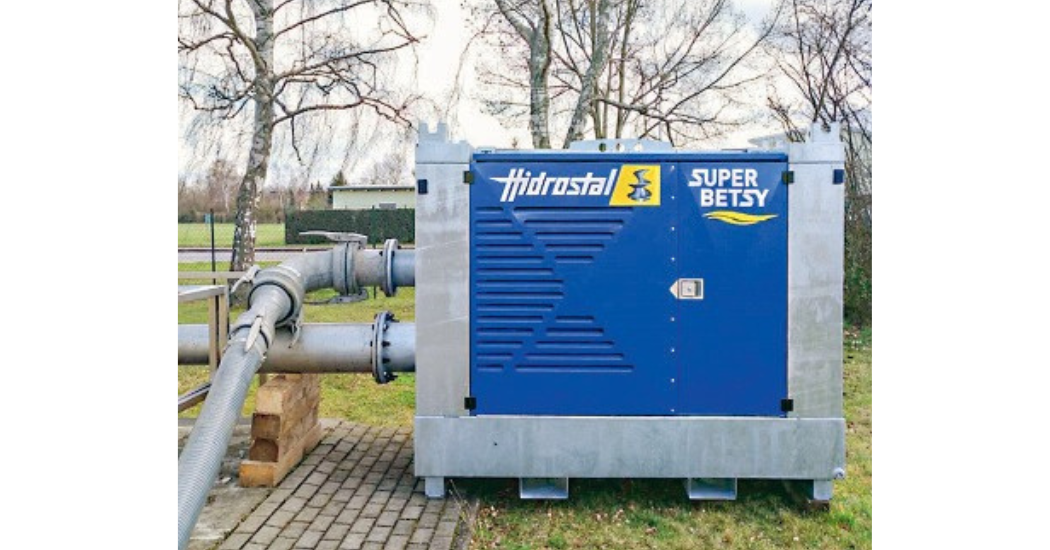

Their rental fleet features a diverse selection of high-quality Hidrostal pumps, including submersible units and diesel/electric-driven models like the self-priming SuperBetsy. They also offer classical pumping systems alongside highly energy-efficient siphon systems, such as the Heber 2000.
Analysis & testing
From pump performance tests, condition monitoring, inspection & analysis to troubleshooting – they ensure a reliable and safe operation of your pumps and processes.
