Understanding Affinity Laws in Pump Design: Scaling Performance with Precision

Engineering & Design
Understanding Affinity Laws in Pump Design: ๐—ฆ๐—ฐ๐—ฎ๐—น๐—ถ๐—ป๐—ด ๐—ฃ๐—ฒ๐—ฟ๐—ณ๐—ผ๐—ฟ๐—บ๐—ฎ๐—ป๐—ฐ๐—ฒ ๐˜„๐—ถ๐˜๐—ต ๐—ฃ๐—ฟ๐—ฒ๐—ฐ๐—ถ๐˜€๐—ถ๐—ผ๐—ป

Understanding Affinity Laws in Pump Design: Scaling Performance with Precision

Theory bites is a collection of basic hydraulic theory and will touch upon pump design and other areas of pump industry knowledge.

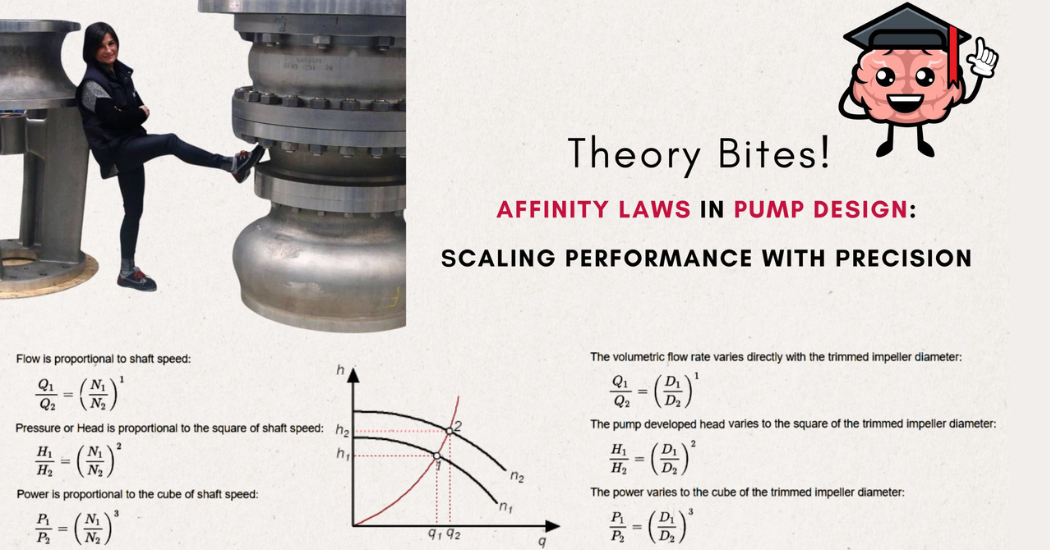

In the realm of pump design, the Affinity Laws are fundamental principles that describe how changes in impeller speed or diameter affect a pump’s performance. Grasping these relationships is crucial for engineers aiming to optimize pump operations.โฃ
โฃ
Key Relationships:โฃ
Flow Rate (Q): Directly proportional to impeller speed (N) or diameter (D). Doubling the speed or diameter results in doubling the flow rate.โ€‹โฃ
โฃ
Head (H): Proportional to the square of the impeller speed or diameter. Doubling the speed or diameter increases the head by a factor of four.โ€‹โฃ
โฃ
Power (P): Proportional to the cube of the impeller speed or diameter. Doubling the speed or diameter increases the power requirement by a factor of eight.โ€‹โฃ
โฃ
Practical Applications:โฃ
โฃPerformance Prediction: By applying the Affinity Laws, engineers can predict how modifications in speed or impeller size will influence pump performance, aiding in system optimization.โ€‹โฃ
โฃ
Energy Efficiency: Understanding these laws allows for adjustments that can lead to significant energy savings, especially when operating conditions vary.โ€‹โฃ
โฃ

Design Consideration:
โฃMaterial Strength: Increasing speed or impeller size can elevate mechanical stresses. Ensuring materials can withstand these stresses is vital for safety and longevity.โ€‹โฃ
โฃ
System Compatibility: Modifications should align with the overall system design to prevent issues like cavitation or excessive vibration.โ€‹โฃ

Read moreย Theory Bites from Maria Elena Rodriguez.
