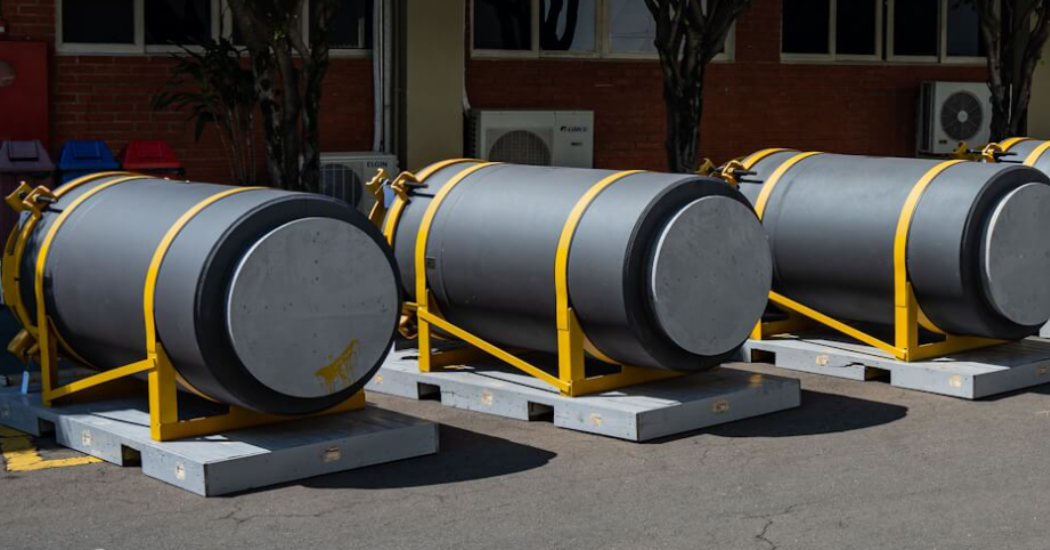

Teadit How to Elevate Heat Exchanger Performance with Expansion Joints

How to Elevate Heat Exchanger Performance with Expansion Joints

By: Teadit

Expansion joints are critical for ensuring heat exchangers operate reliably under demanding thermal and pressure cycles. By following a structured approach, plants can maximize safety, efficiency, and equipment lifespan. Here are six key steps to guide the process.

Step 1: Define Application Requirements

Gather precise operating data before starting the design process. Key factors include:

  • Operating pressures and temperatures
  • Media type (liquid, gas, corrosive)
  • Materials of the shell and tube sheet
  • Drawing with dimensions, such as the length of the tube sheet, shell diameter, and thickness
  • For a floating head heat exchanger type we need to know what the internal and external pressures are
  • Thermal expansion ranges and movement requirements
  • Applicable regulatory codes (ASME VIII, EJMA)

Why it matters: The right expansion joint begins with a complete understanding of the application.

Step 2: Collaborate with Engineering Experts

Work closely with experienced engineers to develop tailored solutions. This phase includes:

  • Clarifying uncertainties early
  • Corrosion allowance
  • Heavy-wall bellows option if necessary

Why it matters: Collaboration ensures the final design balances performance, compliance, and reliability.

Step 3: Select the Right Materials

Choose materials that align with the application’s thermal, chemical, and pressure demands. Options range from:

  • Standard alloys for general service
  • Materials for corrosive or high-temperature conditions

Why it matters: The correct material selection directly impacts longevity and safety.

Step 4: Apply Rigorous Quality Control

Expansion joints must undergo stringent testing and inspection, including:

  • Third-party weld inspections (e.g., X-ray)
  • Pressure and testing
  • Dye penetrant and welding compliance to ASME IX standards

Why it matters: Quality control safeguards performance and ensures regulatory compliance.

Step 5: Integrate Gasket and Expansion Joint Performance

Expansion joints should be designed in harmony with sealing systems. This involves:

  • Confirming gasket compatibility with media and operating conditions
  • Performing torque calculations to prevent leaks
  • Ensuring dimensional precision for reliable sealing

Why it matters: Treating gaskets and joints as a single system maximizes reliability and reduces fugitive emissions.

Step 6: Verify Certifications and Specialized Capabilities

Work with a manufacturer that:

  • Designs to ASME VIII and B31.3 standards
  • Employs ASME IX-certified welders
  • Maintains EJMA membership for global best practices
  • Offers specialized capabilities, such as heavy-wall, toroidal or reinforced bellows

Why it matters: Certifications and advanced capabilities prove that the supplier can handle both routine and highly complex applications.

Final Note

By following these six steps, requirements, collaboration, materials, quality, integration, and certification, plants can ensure their heat exchangers operate safely, efficiently, and with minimized downtime. Expansion joints may be hidden components, but they are essential for unlocking reliable performance.

Whether your application demands heavy-wall, toroidal or reinforced bellows, specialized materials, or custom designs, TEADIT’s solutions provide reliability you can count on. Learn more about how to elevate your heat exchanger’s performance in the full article!
