1. Why Expansion Joint Maintenance Matters
   Expansion joints absorb thermal expansion, vibration, and movement in piping systems.
   A strong maintenance program prevents unexpected failures, reduces downtime, and
   shifts facilities from reactive to preventive maintenance.
2. Understand the Three Types of Maintenance Programs
   A reliable program begins with understanding the maintenance strategies available:

Preventive Maintenance (PM)

• Time-based (monthly, annual, biennial).
• Focuses on scheduled inspections and servicing to prevent failures.
• Extends asset life and reduces emergency repairs.

Condition-Based Maintenance (CBM)

• Uses real-time data to determine when maintenance is needed.
• Includes vibration analysis, thermography, and acoustic monitoring.
• Minimizes unnecessary work while catching issues early.

Corrective Maintenance (CM)

• Responds to issues after they occur.
• Common for expansion joints but results in more downtime and disruptions.

Goal: Move expansion joints from CM to PM/CBM for higher reliability and fewer emergencies.

1.  Apply Core Criteria for Any Maintenance Program

Before developing a maintenance plan, assess each expansion joint using three
essential criteria:

Equipment Criticality

• Assess impact of failure, redundancy, and operational importance.
• Critical joints with no backup require higher attention and more frequent monitoring.

Manufacturer Recommendations

• Follow OEM guidelines and permit requirements.
• Recommendations include maintenance intervals, warning signs, and service procedures.

Operational Conditions

• Evaluate temperature, pressure, media type, and expected movement.
• Check if there is any damage to the piping anchors.
• These factors determine how often inspections and monitoring should occur.

This helps ensure maintenance tasks are tailored to real-world operating conditions.

4. Build a Maintenance Program for Expansion Joints

A. Identify and Prioritize Equipment

• Create an inventory of expansion joints.
• Assign criticality ratings (impact on operations, redundancy, downtime risk).

B. Select Maintenance Types

Choose maintenance combinations such as:

• Visual inspections during outages
• Thermographic inspections to detect leaks or hot spots
• Condition monitoring for critical joints (temperature + pressure sensors)

C. Establish a Maintenance Schedule

• Set inspection frequency according to criticality.
• Example:
• • Visual inspections: bi-annually during shutdowns
  • Thermography: quarterly
  • Continuous sensors: critical lines

D. Consult Experts and Manufacturers

• Review program with SMEs and OEMs to ensure accuracy and completeness.
• Update based on new technologies or inspection feedback.

E. Implement, Track, and Improve

• Roll out the program.
• Analyze findings, adjust intervals, and refine inspections

5. Follow SME Best Practices for Metallic vs. Non-Metallic Expansion Joints
Different expansion joint types require different preventive actions.

Non-Metallic Expansion Joints

Best practices include:

• Replace bellows (fabric belt) and thermal insulation pillow if ruptured.
• Conduct routine visual inspections.
• Use thermal cameras to identify early-stage overheating or leaks.

Watch for:

• Blocked airflow due to material buildup
• Missing bolts on clamping bars
• Visible ruptures or leakage
• Color changes in the bellows indicating overheating
• Any frame or structure in direct contact with the fabric

Metallic Expansion Joints
Best practices include:

• Replace the entire unit if the bellows leaks or ruptures.
• Conduct regular preventive inspections to avoid failure.

Watch for:

• Leaks, ruptures, or damaged convolutions

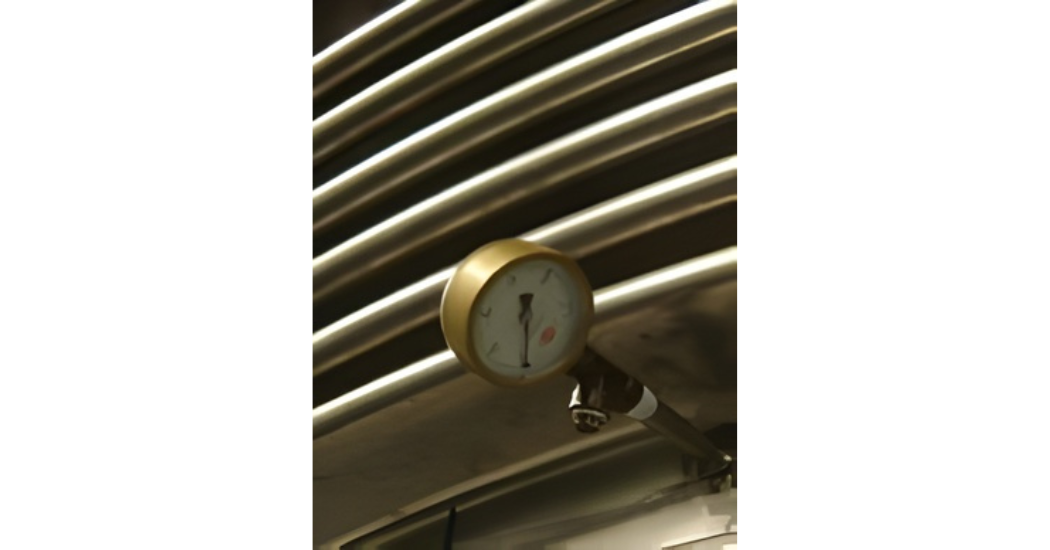

• Abnormal bellows pitch or movement indicator readings
• Leakage between redundant plies
• Anchor or guide issues causing unintended movement
• Fatigue life nearing its limit—compare theoretical vs. actual service life

6. Know When to Involve the Manufacturer
If damage or an anomaly is detected:

• Contact the manufacturer to assess repair urgency.
• Follow recommended corrective steps.
• Ensure proper resolution and minimal downtime.

By applying this 5-step framework, facilities achieve:

• Higher reliability and uptime
• Better safety and compliance
• Lower long-term maintenance costs
• Improved resource planning
• Longer expansion joint lifespan
• Reduced energy consumption and better operational efficiency

A well-built expansion joint maintenance program transforms facilities from reactive to proactive, ensuring long-term sustainability and competitiveness. Read the full article to learn more!
